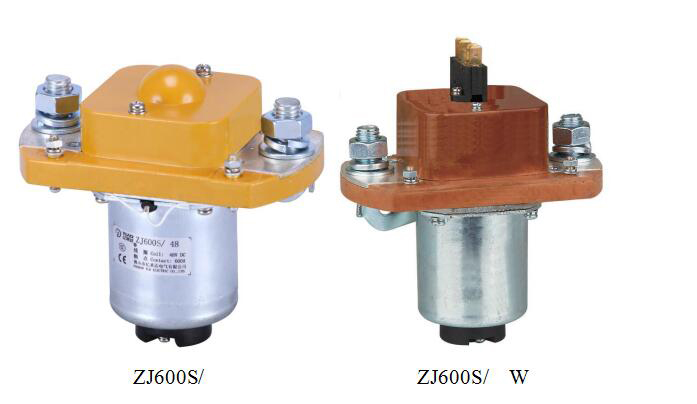

ZJ600S

  • ZJ600S
  • ZJ600S
  • ZJ600S
ZJ600S
  • 产品介绍

FEATURES
Contact Switching capability
SPST-NO Contact Arrangement

Application: For Electric Control System of Communication Power Supply、

Engineering Machine、Electro-motion Forklift、Motor Car、Train、

Watercraft and UPS etc.


01  Nomination(nomogram)



02  Use conditions required

NO.

Parameters

Product code

ZJ600Sseries

1

Ambient temperature:

(-40~+60)℃

2

Relative humidity:

(Up to 98% at +20℃)

3

Vibration freq .at the fixed position:

(10~200)HZ、Acceleration≤3.5g

4

Shocking

(60~100)time/minute、Acceleration≤4g

5

Mounting directions

Optional



03  Basic technical data

NO.

Parameters

Product code

ZJ600Sseries

1

Rated coil volt  (V DC)

12

24

30

48

60

72

120

2

Max. coil start current in cold state at  20℃(A)

13

7.5

6

3.8

1.8

1.6

1

3

keep the coil current under rated volt at 20℃(A)

1

0.5

0.4

0.3

0.2

0.2

0.1

4

Coil Power dissipation(W)

8~10



5

Operating volt in cold state at (20±5)℃(V)

Pick-up

Not above 70% of rated coil volt

Release

Rated coil volt(5~40)%

6

Fluctuating range of power supply volt

(85%~110%) rated volt

7

Rated volt of contact circuit (V DC)

60 VDC

8

Rated load current of contact circuit (A)

600A

9

Contact volt drop of contact at 50A:

≤50mV

10

Max. make-break ability of contact

(Connect four times rated load current, make and break once for )5ms



11

Max. operating time at rated volt(ms) (coil with no suppression circuit)

Pick-up

30 mS

Release

30 mS

12

Max. bounce times when contact breaks (mS)

3 mS

13

Puncture(volt) strength

50Hz,1000V AC,1min

14

Mechanical life

100,000 Ops

15

Working duty

Continuous

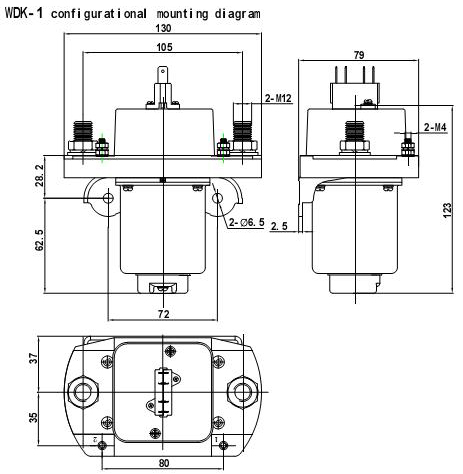

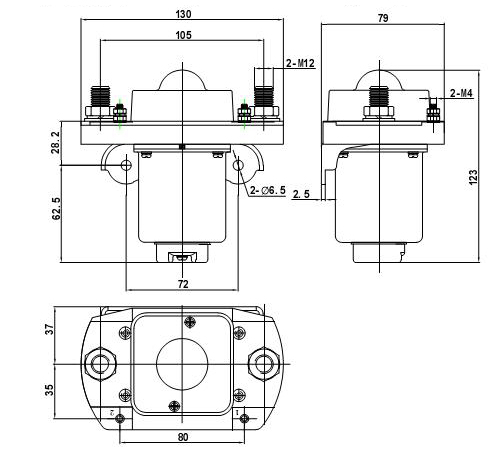

04  Configurational  mounting   diagram

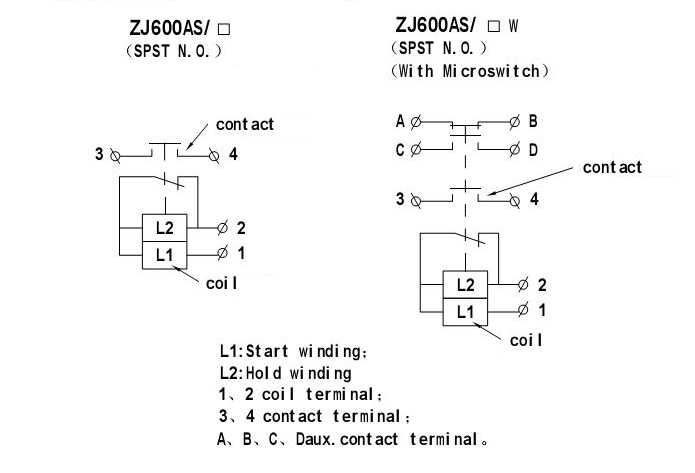

05  Circuit  diagram
