FEATURES
Contact Switching capability
SPDT Contact Arrangement
Application: For Electric Control System of Communication Power Supply、Engineering Machine、Electro-motion Forklift、Motor Car、Train、Watercraft and UPS etc.
01 Nomination(nomogram)
02 Use conditions required
NO. |
Parameters |
Product code |
ZJ400YHH series |
||
1 |
Ambient temperature: |
(-40~+60)℃ |
2 |
Relative humidity: |
(Up to 98% at +20℃) |
3 |
Vibration freq.at the fixed position: |
(10~200)HZ、 Acceleration≤3.5g |
4 |
Shocking |
(60~100)time/minute、Acceleration≤4g |
5 |
Mounting directions |
Optional |
03 Basic technical data
NO. |
Parameters |
Product code |
|||||||
ZJ400YHH series |
|||||||||
1 |
Rated coil volt (V DC) |
12 |
24 |
30 |
48 |
60 |
80 |
120 |
|
2 |
Coil Power dissipation (W) |
13~20 |
|||||||
3 |
Operating volt in cold state at(20±5)℃(V)
|
Pick-up |
Not above 70% of rated coil volt |
||||||
Release |
(5~40)%Rated coil volt
|
||||||||
4 |
Fluctuating range of power supply volt |
(85%~110%) rated volt |
|||||||
5 |
Rated volt of contact circuit (V DC) |
60 VDC |
|||||||
6 |
Rated load current of contact circuit (A) |
400A |
|||||||
7 |
Contact volt drop of contact at 100A |
≤50mV |
|||||||
8 |
Puncture(volt) strength |
50Hz,1000V AC,1min |
|||||||
9 |
Max. make-break ability of contact |
(Connect four times rated load current, make and break once for )5ms |
|||||||
10 |
Mechanical life |
100,000 Ops |
|||||||
11 |
Working duty |
Continuous |

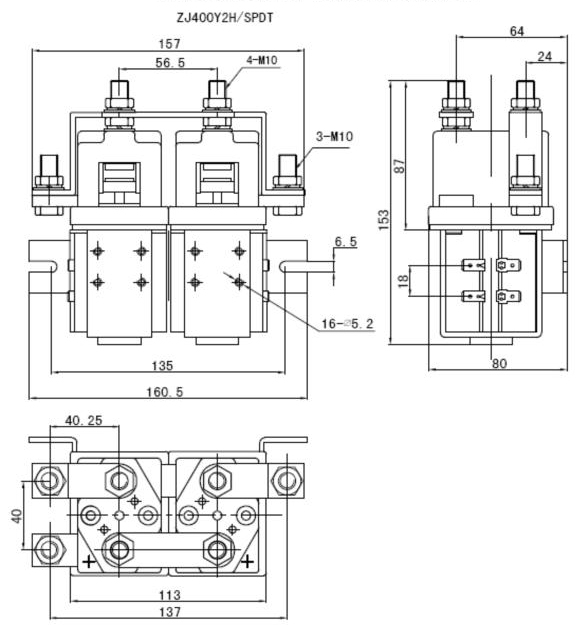

04 Configurational mounting diagram
05 Circuit diagram
