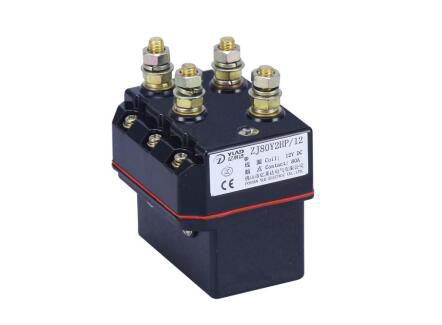

FEATURES
Contact Switching capability
SPDT Contact Arrangement
Application: For Electric Control System of Communication Power Supply、Engineering Machine、Electro-motion Forklift、Motor Car、Train、Watercraft and UPS etc.

01 Nomination(nomogram)

02 Use conditions required
NO. | Parameters | Product code |
ZJ80Y2H series |
1 | Ambient temperature: | (-40~+60)℃ |
2 | Relative humidity: | (Up to 98% at +20℃) |
3 | Vibration freq .at the fixed position: | (10~200)Hz、Acceleration≤3.5g |
4 | Shocking | (60~100)time/minute、Acceleration≤4g |
5 | Mounting directions | Optional |
03 Basic technical dataNO.
| Parameters | Product code |
ZJ80Y2H series |
1 | Rated coil volt (VDC)
| 12 | 24 | 30 | 48 | 60 | 80 | 120 |
2 | Coil Power dissipation (W)
| 8~13 |
3 | Operating volt in cold state at (20±5)℃(V) | Pick-up
| Not above 70% of rated coil volt |
Release | (5~40)%Rated coil volt |
4 | Fluctuating range of power supply volt | (85%~110%) rated volt |
5 | Rated volt of contact circuit (V DC) | 60 VDC |
6 | Rated load current of contact circuit (A) | 80A |
7 | Contact volt drop of contact at 100A: | ≤80mV |
8 | Puncture(volt) strength | 50Hz,1000V AC,1min |
9 | Max. make-break ability of contact | (Connect four times rated load current, make and break once for )5ms |
10 | Mechanical life | 100,000 Ops |
11 | Working duty | Continuous |

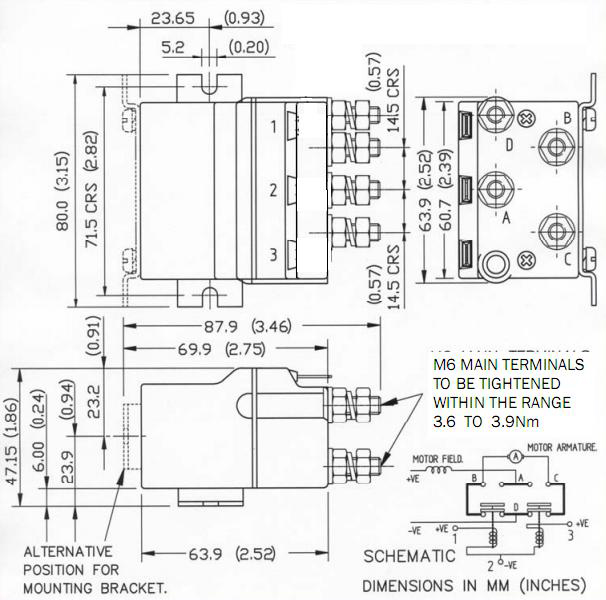

04 Configurational mounting diagram
