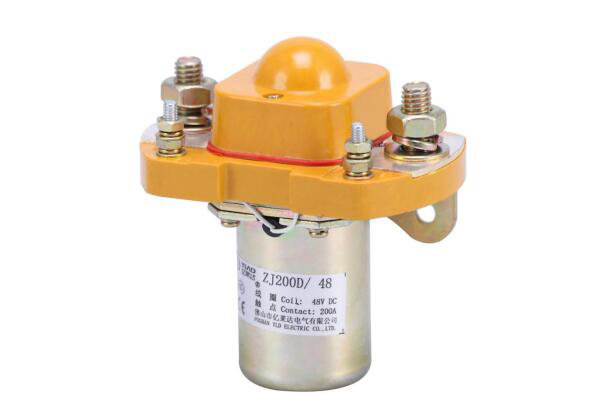

ZJ200D

  • ZJ200D
ZJ200D
  • 产品介绍

FEATURES
Contact Switching capability
SPST-NO Contact Arrangement

Application: For Electric Control System of Communication Power Supply、

Engineering Machine、Electro-motion Forklift、Motor Car、Train、

Watercraft and UPS etc.

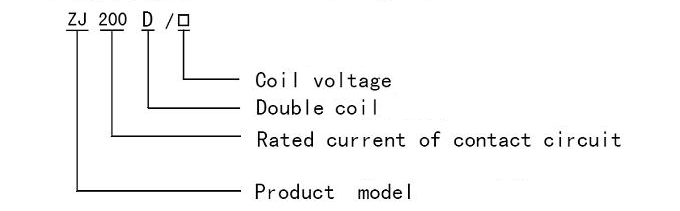

01  Nomination(nomogram)


02  Use conditions required

NO.

Parameters

Product code

ZJ200Dseries

1

Ambient temperature:

(-40~+65)℃

2

 Relative humidity:

(Up to 98% at +20℃)

3

Vibration freq .at the fixed position:

(10~200)HZ、Acceleration≤3.5g

4

 Shocking

(60~100)time/minute、Acceleration≤4g

5

Mounting directions

Optional


03  Basic technical data

NO.

Parameters

Product code

ZJ200Dseries

1

Rated coil volt  (V DC)

12

24

30

48

60

72

120

2

Coil Power dissipation(W)

10~12

3

Operating volt in cold state at (20±5)℃(V)

Pick-up

Not above 70% of rated coil volt

Release

Rated coil volt(5~40)%

4

Fluctuating range of power supply volt

(85%~110%) rated volt

5

Rated load current of contact circuit (A)

200A

6

Max. make-break ability of contact

(Connect four times rated load current, make and break once for )5ms

7

Max. operating time at rated volt(ms) (coil with no suppression circuit)

Pick-up

30 mS

Release

30 mS

8

Max. bounce times when contact breaks (mS)

3 mS

9

Puncture(volt) strength

50Hz,1000V AC,1min

10

Mechanical life

100,000 Ops

11

Working duty

Continuous

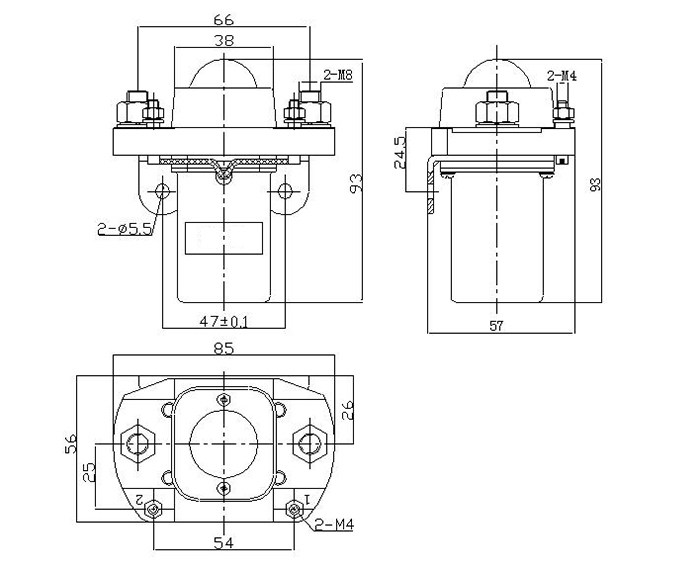

04  Configurational  mounting   diagram

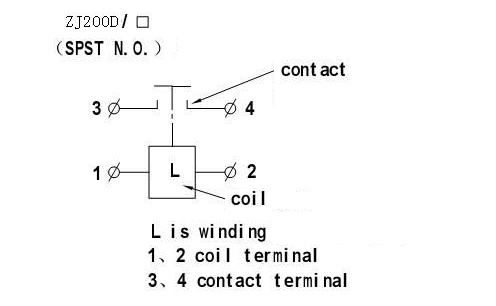

05  Circuit  diagram
