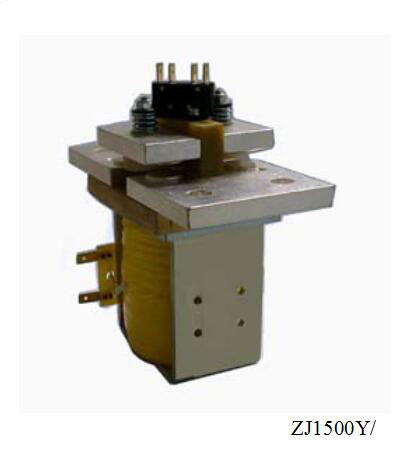

ZJ1500Y

  • ZJ1500Y
ZJ1500Y
  • 产品介绍

FEATURES
Contact Switching capability

Application: For Electric Control System of Communication Power Supply、

Engineering Machine、Electro-motion Forklift、Motor Car、Train、

Watercraft and UPS etc.

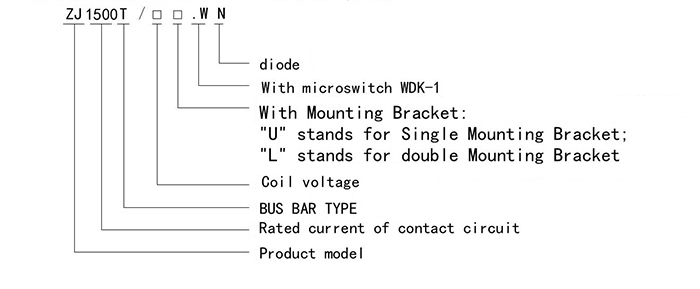

01  Nomination(nomogram)


02        Use conditions required

NO.

Parameters

Product code

ZJ1500Y series

1

Ambient temperature:

(-40~+60)℃

2

 Relative humidity:

(Up to 98% at +20℃)

3


Vibration freq.at the fixed position:

(10~200)HZ、

Acceleration≤3.5g

4

 Shocking

(60~100)time/minute、Acceleration≤4g

5

Mounting directions

Optional


03        Basic technical dat

NO.

Parameters

Product code

ZJ1500Y series

1

Rated coil volt  (V DC)

12

24

30

48

60

80

120

2

Coil Power dissipation (W)

25~35

3




Operating volt in cold state at(20±5)℃(V)


Pick-up


Not above 70% of rated coil volt


Release

(5~40)%Rated coil volt

4


Fluctuating range of power supply volt


(85%~110%) rated volt

5

Rated volt of contact circuit (V DC)

60 VDC

6

Rated load current of contact circuit (A)

1500A

7

Contact volt drop of contact at 100A

≤50mV

8

Puncture(volt) strength

50Hz,1000V AC,1min

9

Max. make-break ability of contact

(Connect four times rated load current, make and break once for )5ms

10

Mechanical life

100,000 Ops

11

Working duty

Continuous

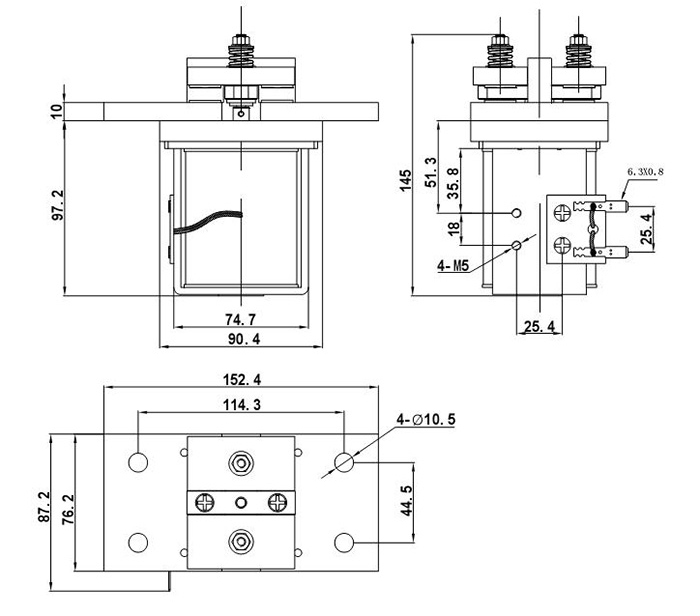

04  Configurational  mounting   diagram

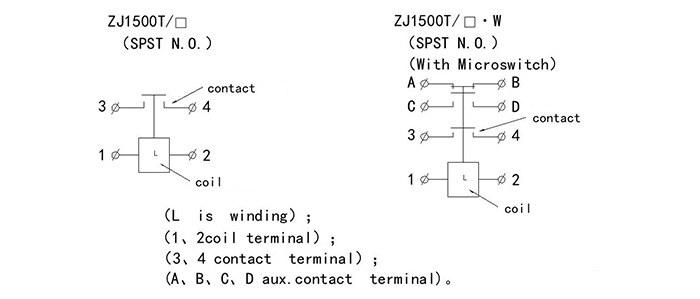

05  Circuit  diagram
