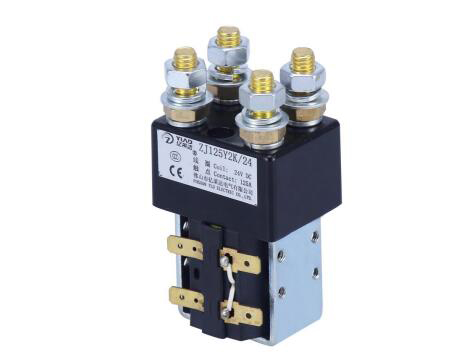

ZJ125Y2K
  • 产品介绍

FEATURES
Contact Switching capability

Application: For Electric Control System of Communication Power Supply、Engineering Machine、Electro-motion Forklift、Motor Car、Train、Watercraft and UPS etc.

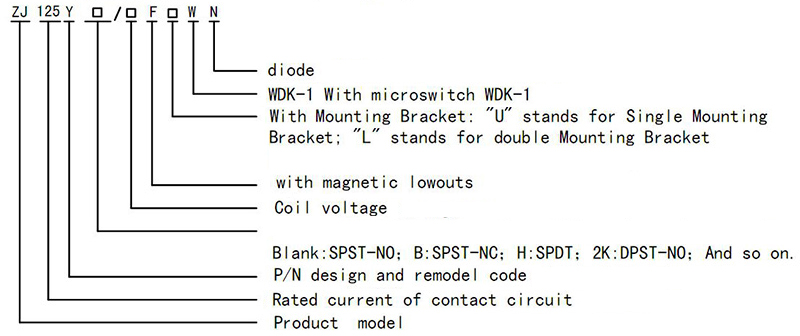

01    Nomination(nomogram)


02   Use conditions required


NO.

Parameters

                       Product code

                       ZJ125Yseries

1

                  Ambient temperature:

                   (-40~+60)℃

2

                     Relative humidity:

             (Up to 98% at +20℃)

3

        Vibration freq .at the fixed position:

         (10~200)Hz、Acceleration≤3.5g

4

                          Shocking

    (60~100)time/minute、Acceleration≤4g

5

                Mounting directions

                   Optional


03  Basic technical data


NO.

Parameters

Product code

ZJ125Y series

1

Rated coil volt  (VDC)

12

24

30

48

60

80

120

2

Coil Power dissipation (W)

8~15

3

Operating volt in cold state at (20±5)℃(V)

Pick-up

Not above 70% of rated coil volt

Release

(5~40)%

Rated coil volt

4

Fluctuating range of power supply volt

(0.85%~110%) rated volt

5

Rated volt of contact circuit (V DC)

60 VDC

6

Rated load current of contact circuit (A)

125A

7

Contact volt drop of contact at 100A:

≤50mV

8

Puncture(volt) strength

50Hz,1000V AC,1min

9

Max. make-break ability of contact

(Connect four times rated load current, make and break once for )5ms

10

Mechanical life

100,000 Ops

11

Working duty

Continuous

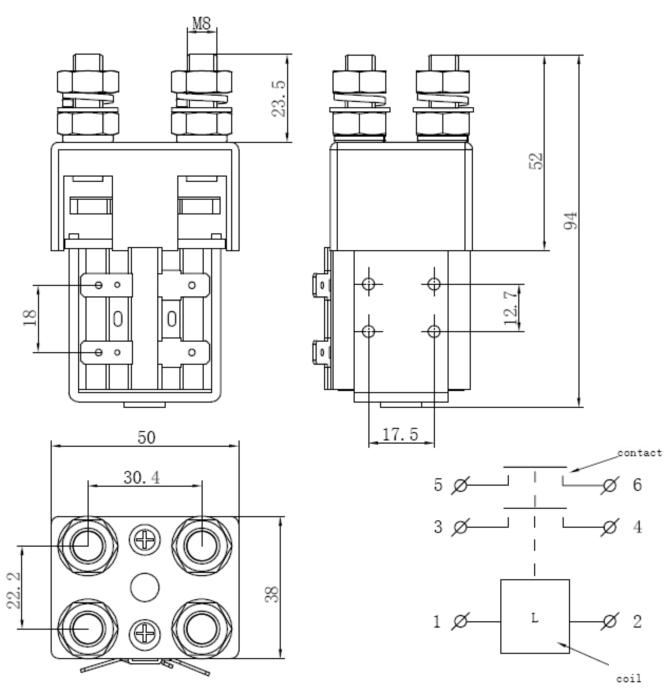

04 Configurational mounting diagram
