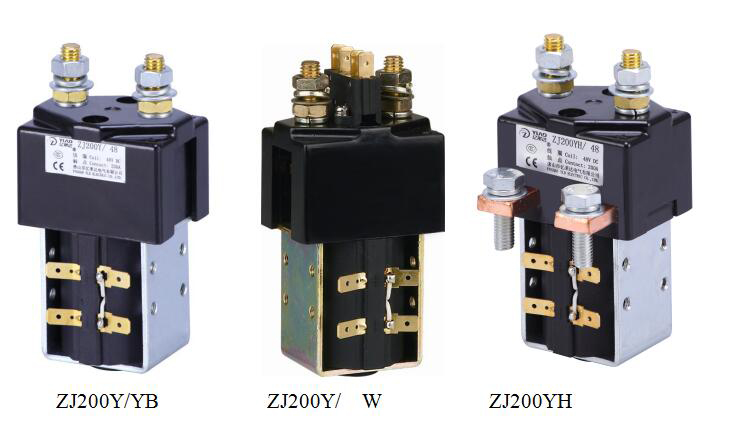

FEATURES
Contact Switching capability
Application: For Electric Control System of Communication Power Supply、
Engineering Machine、Electro-motion Forklift、Motor Car、Train、
Watercraft and UPS etc.

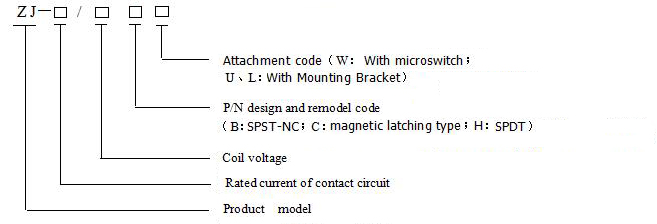

01 Nomination(nomogram)

02 Use conditions required
NO.
| Parameters | Product code |
ZJ200Y series |
1 | Ambient temperature: | (-40~+60)℃ |
2 | Relative humidity: | (Up to 98% at +20℃) |
3 |
Vibration freq.at the fixed position: | (10~200)HZ、 Acceleration≤3.5g |
4 | Shocking |
(60~100)time/minute、Acceleration≤4g |
5 | Mounting directions | Optional |
03 Basic technical data
NO.
| Parameters | Product code |
ZJ200Y series |
1 |
Rated coil volt (V DC) | 12 | 24 | 30 | 48 | 60 | 80 | 120 |
2 |
Coil Power dissipation (W) | 13W |
20W |
3 |
Operating volt in cold state at (20±5)℃(V) | Pick-up
|
Not above 70% of rated coil volt |
Release
| (5~40)% Rated coil volt |
4 |
Fluctuating range of power supply volt | (85%~110%) rated volt |
5 | Rated volt of contact circuit (V DC) | 60VDC |
6 | Rated load current of contact circuit (A) | 200A |
7 |
Contact volt drop of contact at 100A | ≤80mV |
8 | Puncture(volt) strength | 50Hz,1000V AC,1min |
9 |
Max. make-break ability of contact | (Connect four times rated load current, make and break once for )5ms |
10 | Mechanical life | 100,000 Ops |
11 | Working duty | Continuous |

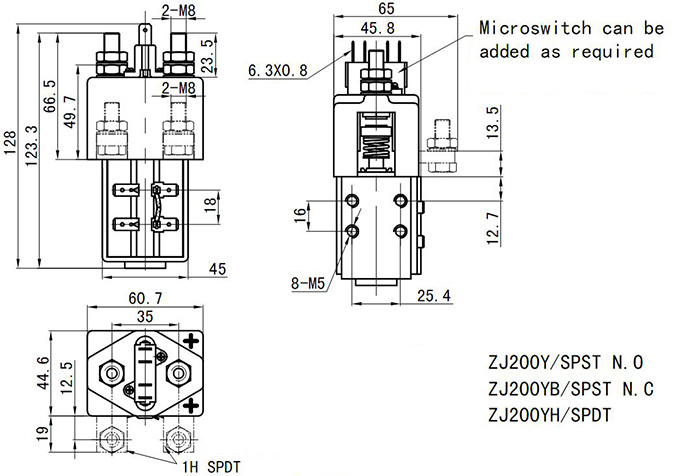

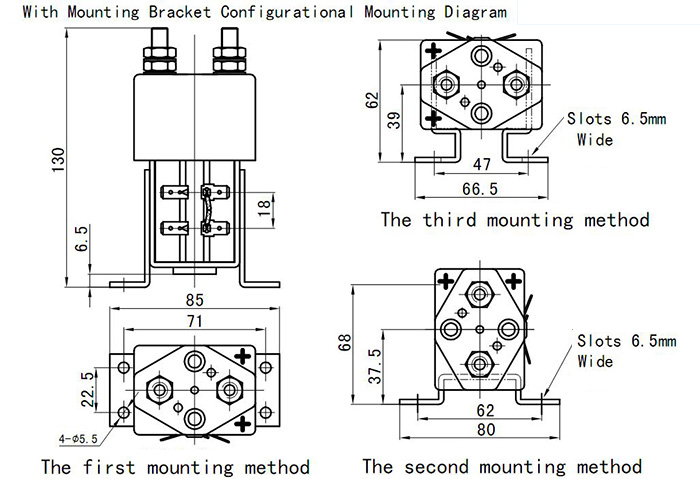

04 Configurational mounting diagram

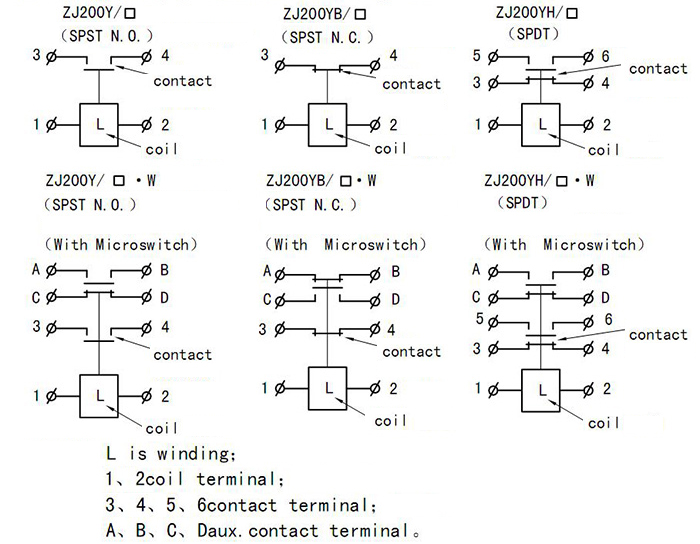

05 Circuit diagram
